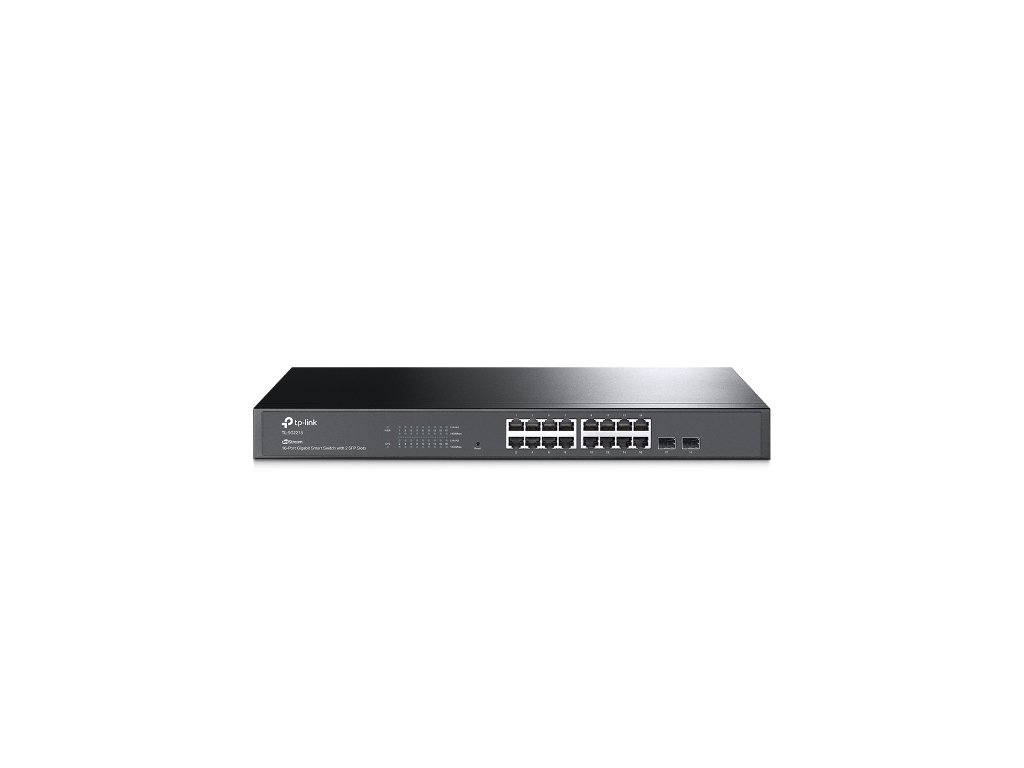

TP-Link TL-SG2218P 16xGb POE+ 2xSFP 150W smart switch Omada SDN

Podrobný popis

TP-Link switch TL-SG2218

18portový gigabitový inteligentní switch JetStream s 16 porty PoE+

Platforma softwarově definovaných sítí Omada (SDN) integruje síťová zařízení, včetně přístupových bodů, switchů a bran, a poskytuje 100% centralizovanou cloudovou správu.

Technická specifikace

HARDWARE FEATURES
Standards and Protocols
*IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface
*16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
*2× Gigabit SFP Slots
Network Media
*10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
*100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
*1000BASE-X: MMF, SMF
Fan Quantity
*1
Power Supply
*100-240V AC, 50/60Hz
PoE Ports (RJ45)
*Standard: 802.3at/af compliant
*PoE+ Ports: 16 Ports
*PoE Power Budget: 150 W*
Dimensions ( W x D x H )
*17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Mounting
*Rack Mountable
Max Power Consumption
*181.4 W (110 V/60 Hz) (with 150 W PD connected)
*178.3 W (220 V/50 Hz) (with 150 W PD connected)
Max Heat Dissipation
*619.06 BTU/hr (110 V/60 Hz) (with 150 W PD connected)
*608.52 BTU/hr (220 V/50 Hz) (with 150 W PD connected)
PERFORMANCE
Switching Capacity
*36 Gbps
Packet Forwarding Rate
*26.78 Mpps
MAC Address Table
*8K
Packet Buffer Memory
*4.1 Mbit
Jumbo Frame
*9 KB
Software features
Quality of Service(QoS)
*802.1p CoS/DSCP priority
*8 priority queues
*Priority Schedule Mode
*Queue Weight Config
*Bandwidth Control
*Smoother Performance
*Storm Control
L2 and L2+ Features
*16 IP Interfaces
*Static Routing
*DHCP Server
*DHCP Relay
*Static ARP
*Proxy ARP
*Gratuitous ARP
*Link Aggregation
*Spanning Tree Protocol
*Loopback Detection
*Flow Control
*Mirroring
*802.1ab LLDP/ LLDP-MED
VLAN
*VLAN Group
*802.1Q tag VLAN
*MAC VLAN: 12 Entries
*Protocol VLAN
*GVRP
*Voice VLAN
Access Control List(ACL)
*Support up to 230 entries
*Time-Range
*Time-based ACL
*MAC ACL
*IP ACL
*IPv6 ACL
*Combined ACL
*Rule Operation
*Policy Action
*ACL Rules Binding
*Actions for flows
Security
*AAA
*802.1X
*IP/IPv6-MAC Binding
*IP Source Guard
*IPv6 Source Guard
*DoS Defend
*Static/Dynamic/Permanent Port Security
*Broadcast/Multicast/Unicast Storm Control
*Port Isolation
*Secure web management through HTTPS with SSLv3/TLS 1.2
*Secure Command Line Interface (CLI) management with SSHv1/SSHv2
*IP/Port/MAC based access control
Management
*Omada App
*Cloud Access
Others
Certification
*CE, FCC, RoHS
Package Contents
*TL-SG2218P
*Power Cord
*Installation Guide
*Rackmount Kit
*Rubber Feet
System Requirements
*Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
*Operating Temperature: 0–50 ? (32–122 ?);
*Storage Temperature: -40–70 ? (-40–158 ?)
*Operating Humidity: 10–90% RH non-condensing
*Storage Humidity: 5–90% RH non-condensing
