Mercusys MA30E AC1200 Dual-Band WiFi BT PCIe

Podrobný popis

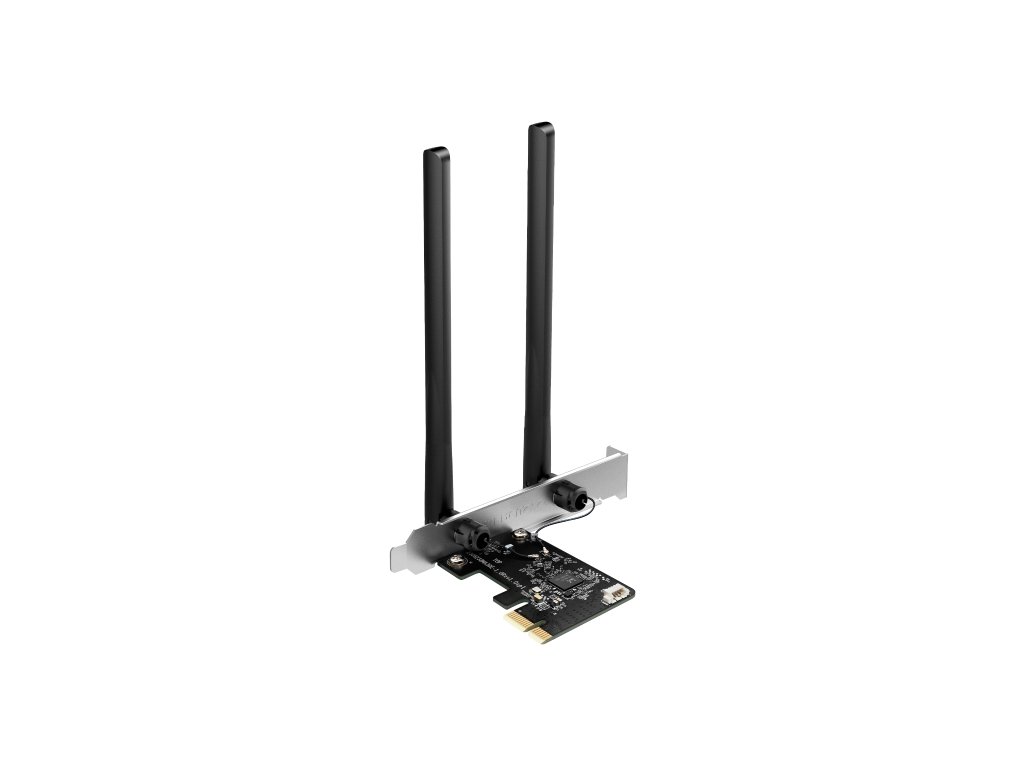

Mercusys MA30E
AC1200 Wi-Fi Bluetooth PCIe Adapter

Functions
Strong Dual Band Wi-Fi Speed

*Speeds up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)1

Wider Signal Coverage

*Two high-performance antennas

Bluetooth 5.0

*The Bluetooth 5.0 technology achieves faster speeds and broader coverage2

MU-MIMO

*Simultaneously serve several devices with no more latency or bandwidth congestion3

Improved Security

*The latest security enhancement, WPA3, provides enhanced protection in personal password safety4

Backward Compatibility

*Full support for 802.11ac/a/b/g/n standards

Windows Compatible

*Supported operating system: Windows 10, 11 (64 bit)

Specifications

Wireless
Wireless Standards
*IEEE 802.11 a/n/ac 5 GHz
*IEEE 802.11 b/g/n 2.4 GHz
WiFi Speeds
*867 Mbps on 5 GHz
*300 Mbps on 2.4 GHz
Reception Sensitivity
5 GHz:
*11a 54Mbps: -77 dBm
*11ac VHT80 MCS0: -92dBm
*11ac VHT80 MCS9: -64dBm
2.4 GHz:
*11g 54Mbps: -76 dBm
*11n HT40 MCS7: -72dBm
Wireless Security
*WPA-PSK/WPA2-PSK/WPA3-SAE
Hardware
Dimensions
*8.9 × 4.8 × 0.85 in (226.3 × 120.8× 21.5 mm
Antenna Type
*2× Fixed High-Performance Omni-Directional Antennas
